Deep-Drawn Parts
Large deep draw components
Zoom-In for Part Detail large deep draw parts
Get the Free Adobe Flash Player Plug-In

Precision Deep-Drawn Components

Deep-Drawn Eyelets
Zoom-In for Part Detail

Braxton is an ISO certified manufacturer of precision deep-drawn eyelets, deep drawn metal enclosures and housings, offering high accuracy and repeatability with tolerances to ±0.0001". We can deep-draw parts to 0.006" (0.15mm) OD, with wall thicknesses as low as 0.0005" (0.013mm). Maximum length is 2.250" (57.15mm), and length-to-diameter ratios greater than 55:1 are attainable. Finished part tolerances are as low as ±0.0001" (0.00254mm), with surface finishes to 10 microinches RMS. Click here for a more detailed synopsis of our capabilities.

Braxton serves the medical, communications, aerospace, specialty automotive and electronics industries, consistently meeting the most unique size, tolerance and finishing requirements of the most challenging applications. Components can be deep drawn from a variety of metals including stainless steel, copper-based alloys, titanium, precious metals and glass-sealing alloys (click here for a full materials list). Slotting, flaring, hole punching and more can be performed on the same production machinery without secondary handling for cost-efficient intricate designs.

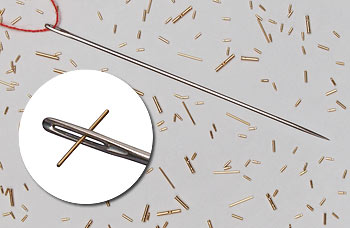

Sample intricate component Preparing drawn parts for shipping
