Deep-Drawn Components

Braxton's Capabilities Maximize the Efficiency of Producing Intricate Components to Meet Your Needs

Critical Dimensions and Tolerances
We can deep-draw parts to 0.006" (0.15mm) OD, with wall thicknesses as low as 0.0005" (0.013mm). Maximum length is 2.250" (57.15mm), and length-to-diameter ratios greater than 55:1 are attainable. Finished part tolerances are as low as ±0.0001" (0.00254mm), with surface finishes to 10 microinches RMS.

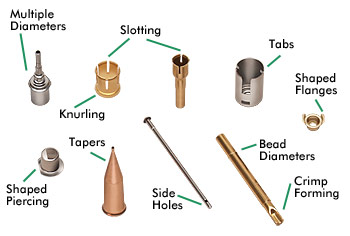

Below is a sampling of the intricate capabilities that make Braxton the logical choice for your deep-drawn part manufacturing needs, including: working with multiple diameters, knurling, slotting, tabs, shaped flanges, bead diameters, crimp forming, side holes, tapers and shaped piercing.

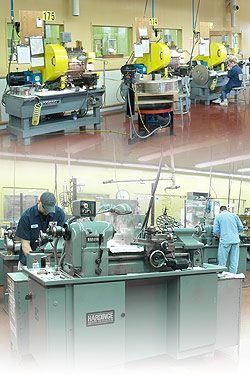

Intricate Component Machining

Braxton can draw a comprehensive range of conventional and special materials

Materials List
Braxton is experienced in drawing a comprehensive range of conventional and special materials, including:

  • Aluminum
  • Beryllium Copper
  • Brass
  • Bronze
  • Copper
  • Gilding
  • Glass Sealing Alloys
    42, 52 and Ni/Fe48
  • Gold
  • Inconel
  • Invar
  • Kovar
  • Monel
  • Nichrome
  • Nickel
  • Nickel Silver
  • Phosphor Bronze
  • Plated Stock
  • Platinum
  • Platinum Iridium
  • Platinum Rhodium
  • Silver
  • Stainless Steel
  • Titanium
